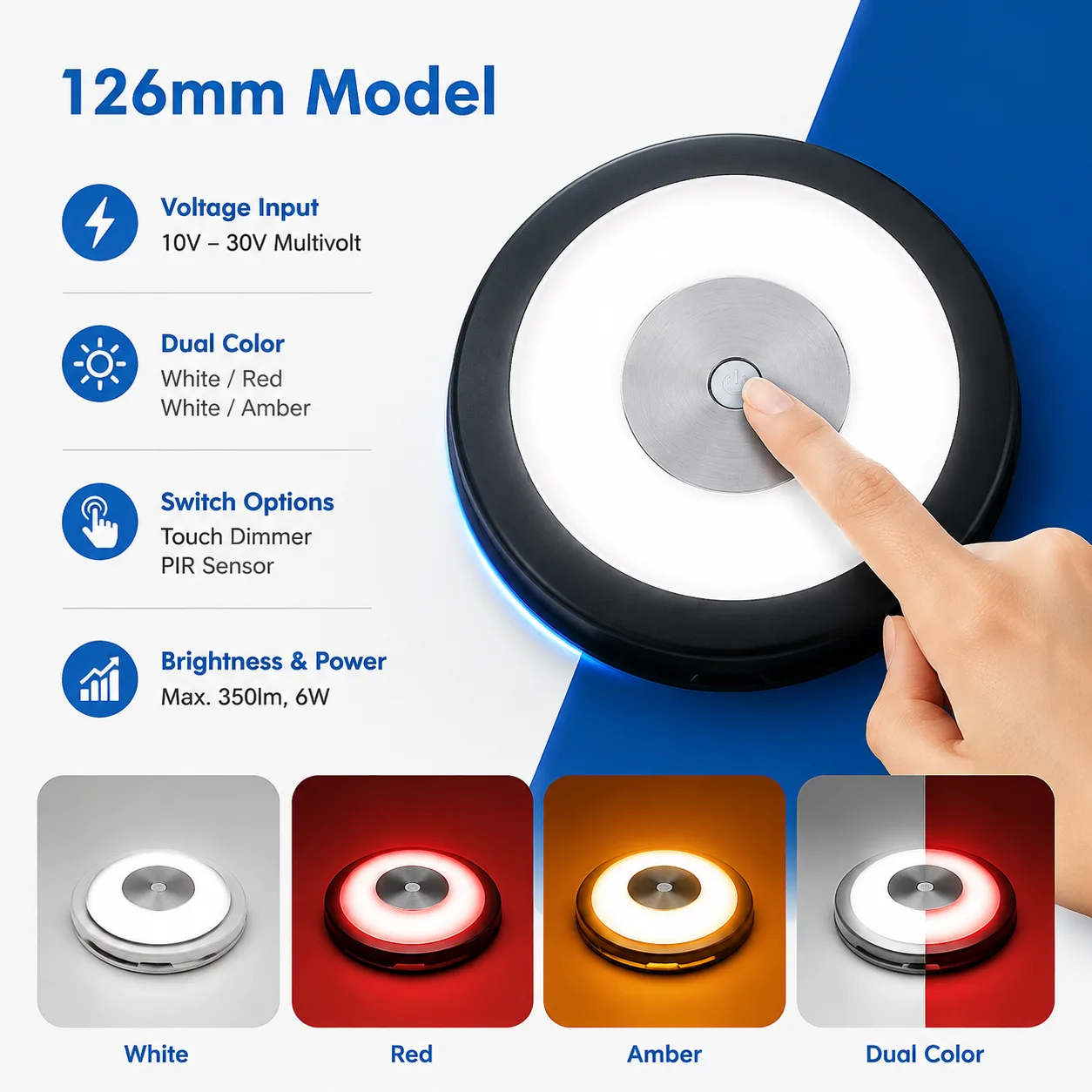

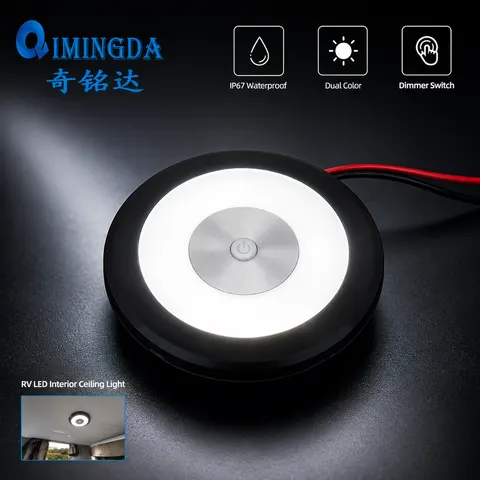

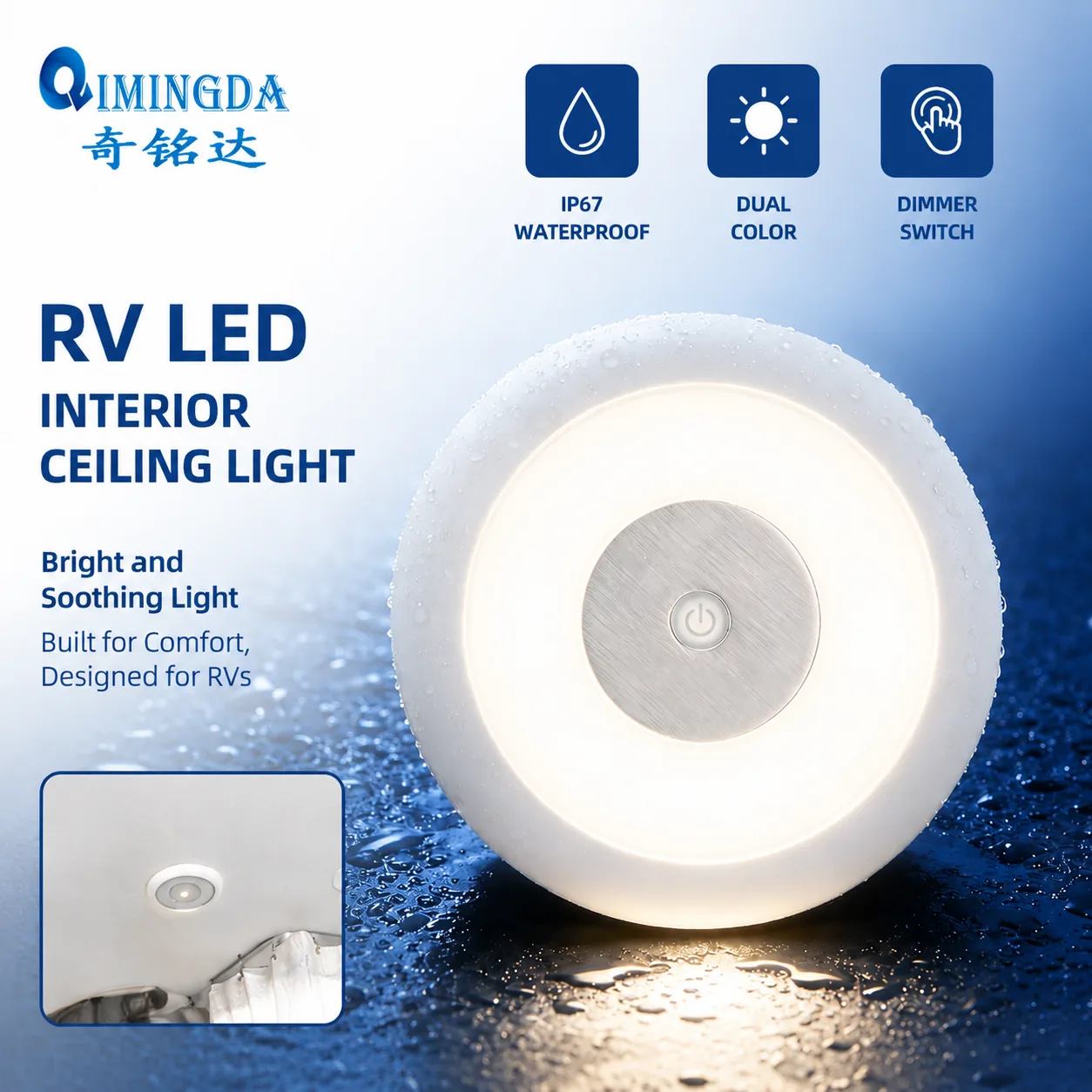

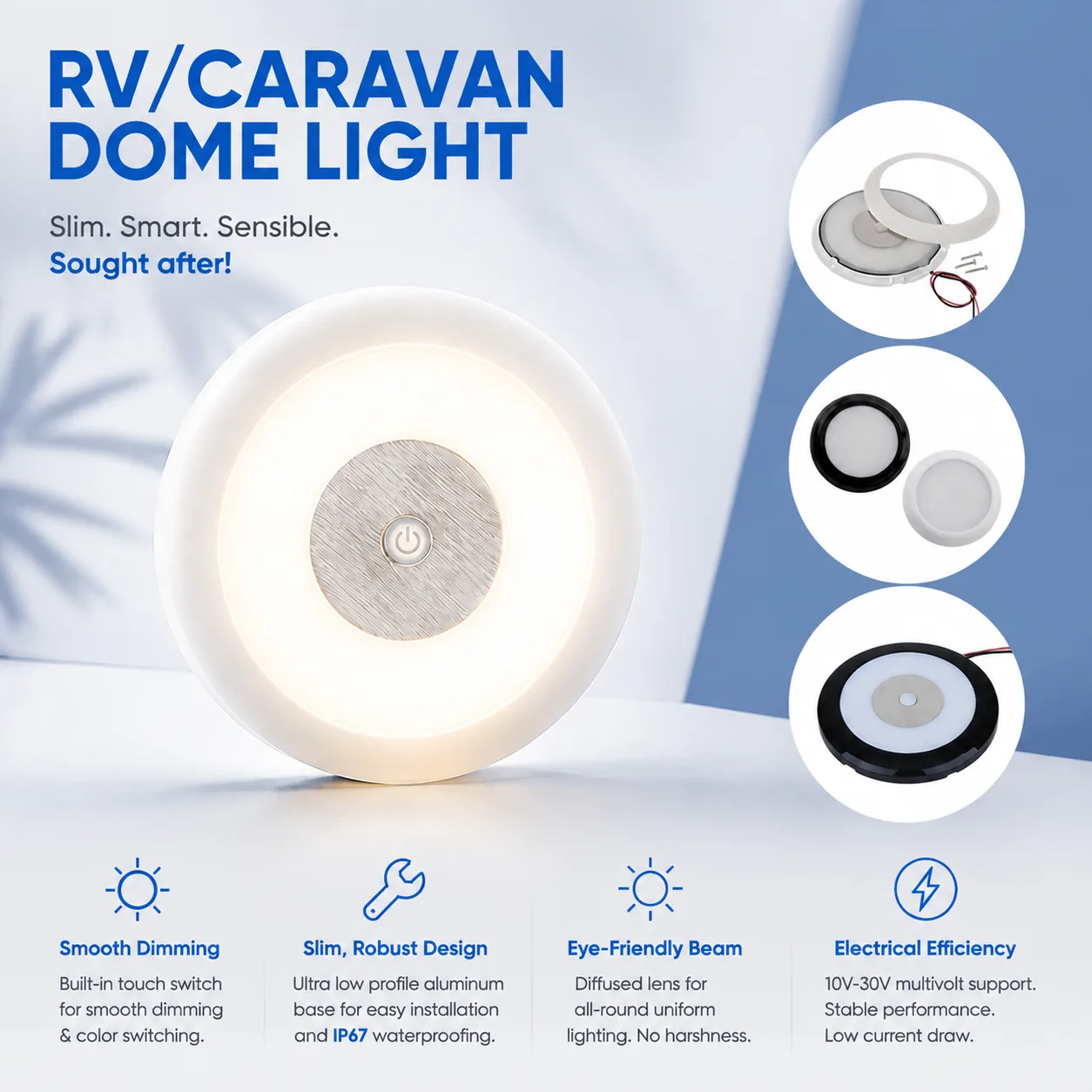

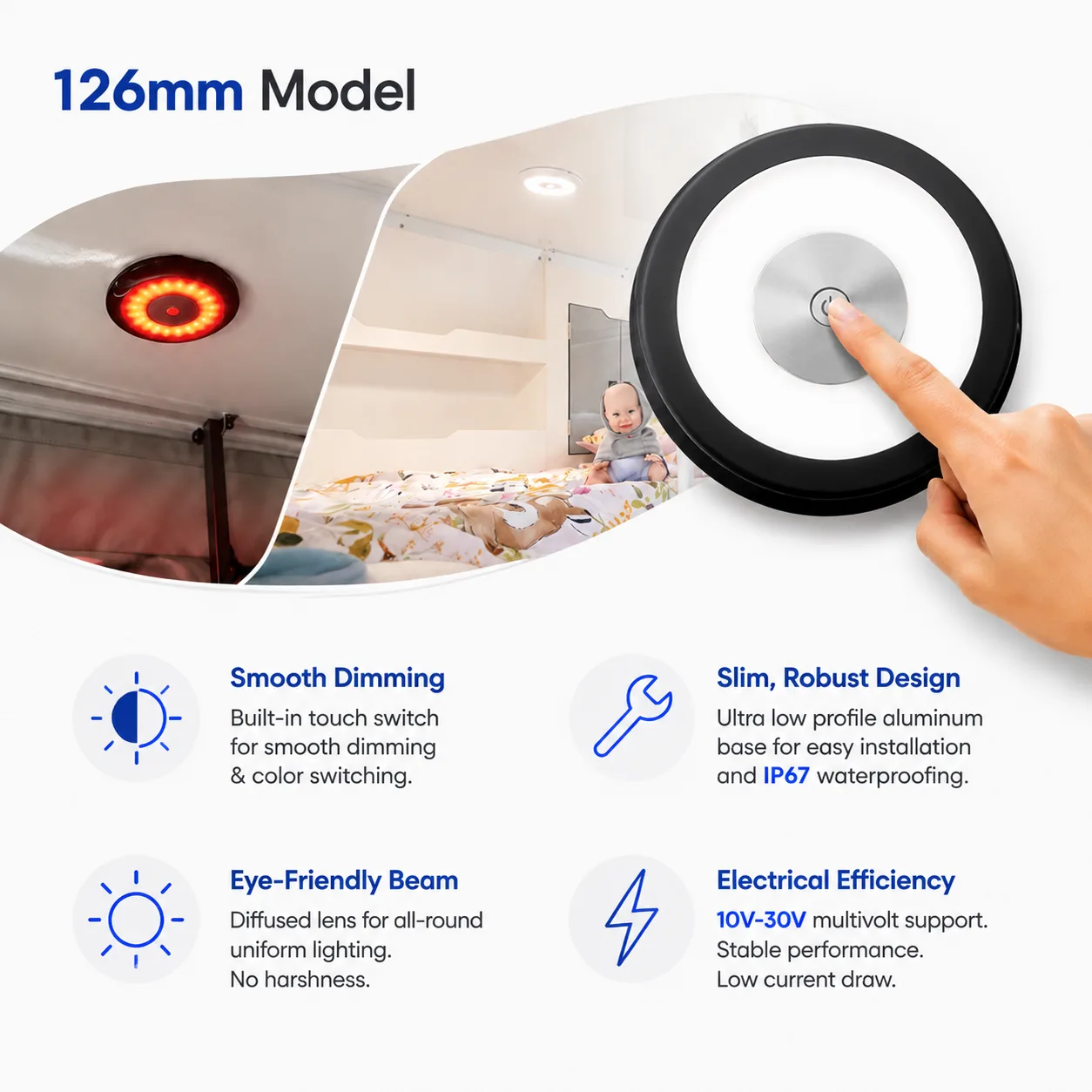

10-30V 126mm LED RV Ceiling Dome Light – Touch Dimmer IP67 Waterproof ADC12 Diecast Aluminum
Model QMD-GNS-RCL-AWSW
10-30V 126mm LED RV ceiling dome light with 120 Epistar SMD2835 chips, 360 lumens output. Features touch dimmer switch, IP67 waterproof rating, tough ADC12 diecast aluminum housing, and UV-stabilized PC lens. Ideal for RVs, trailers, boats, and outdoor lighting. OEM customizations available for housing color and LED color.
- Multi-dimensional, flexible solutions: freely combinable colour temperature, power, dimensions and IP rating
- Test samples before customisation: standard samples provided free of charge to verify luminous efficacy
- Extended warranty: worry-free replacement for any quality issues within 3 years
- Efficient scheduling and delivery: dedicated production lines to meet urgent project requirements
- Cost advantages at source: directly-operated factories, guaranteeing both quality and competitive pricing
Specifications
Specifications
| Dimensions | φ126mm × 12mm |
|---|---|
| LED Chips | 120 x Epistar SMD2835 |
| Luminous Output | 360 lumens (White) |
| Housing Material | ADC12 Diecast Aluminum |
| Lens Material | UV-Stabilized Polycarbonate |
| Waterproof Rating | IP67 |
| Operating Voltage | DC 10-30V |
| Power Consumption | 6W |
| Operating Temperature | -25℃ ~ 65℃ |
| Housing Color Options | White / Black / Metal Finish |
| LED Color Options | White / Amber / Red |
| OEM Customizations | Custom Logo, Custom Box & Manual, etc. |
Product Details
Product Overview
126mm LED dome light designed for RVs, trailers, boats, and outdoor applications. Ultra-slim 12mm profile delivers bright yet comfortable illumination with minimal space occupation.
Smart Dimming
Touch dimmer switch allows quick, easy brightness adjustment with a simple tap.
Durable Construction
ADC12 diecast aluminum base ensures superior heat dissipation and impact resistance. UV-stabilized polycarbonate lens resists yellowing over time.
Fully Waterproof
IP67 rating – completely dust-tight and protected against immersion, suitable for damp or open-air environments.
Optical Performance
120 Epistar SMD2835 high-brightness LEDs deliver 360 lumens (white). 50,000+ hours rated lifespan.
Electrical Specifications
10-30V operating voltage, 0.5A current draw, only 6W power consumption – energy efficient. Operating temperature: -25℃~65℃.
Customization Options
Housing Color: White / Black / Metal Finish
LED Color: White / Amber / Red
OEM: Custom logo printing, custom packaging boxes and manuals, etc.
Applications
RV interiors, trailers/campers, yachts/boats, outdoor awnings, emergency vehicles, commercial display cases, and more.
